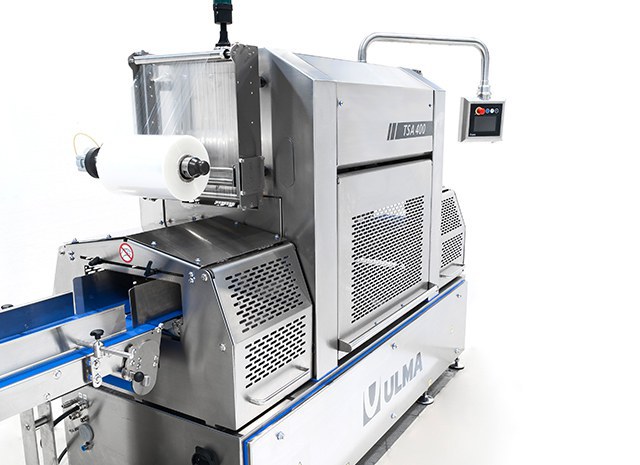

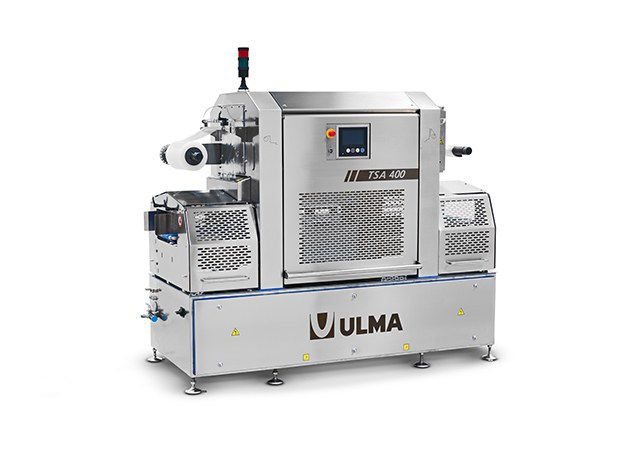

TSA 400

Up to 21 cycles/min in cut&seal and up to 18 cycles/min in MAP. Automatic traysealing machine for all kind of preformed regular trays. Can make modified atmosphere (MAP) and vacuum packing (SKIN). Tray transport system with arms. Suitable for first steps in integrated process automation.

Fully automatic tray sealer designed for all types of preformed trays made of various materials. Sealing is performed using heat-sealable films, which can also be printed.

This machine creates packaging with or without modified atmosphere (MAP), vacuum, Skin packaging, etc., depending on the product's packaging requirements.

The equipment is specifically designed for integration into medium production lines or processes requiring precise control of tray movement during transportation. The sealing process can be configured for single-row (mono-line) or double-row (dual-line) operation, depending on the tray format.

DESIGN HIGHLIGHTS

  • Compact size.
  • Robust construction.
  • Hygienic and stainless-steel design.
  • Seal integrity assurance.
  • User-friendly operation.
  • Low maintenance costs.
  • Commercially available electrical/pneumatic components.
  • Versatility.
  • High production performance: up to 21 cycles/min (up to 60 trays/min).
  • Easy access and cleaning.
  • Quick format change.
  • Optimized consumption (electricity, film, gas, etc.).
  • Connectivity features (Ethernet, OPC UA, remote access).
  • Sealing area: 330 x 400 mm.
  • Maximum tray height: 80/120 mm.
  • Electric die actuation.
  • Pneumatic opening/closing of clamps.
  • Tray transport movement: servomotor-driven.
  • Quick, tool-free die change.
  • Protection rating: IP 65.

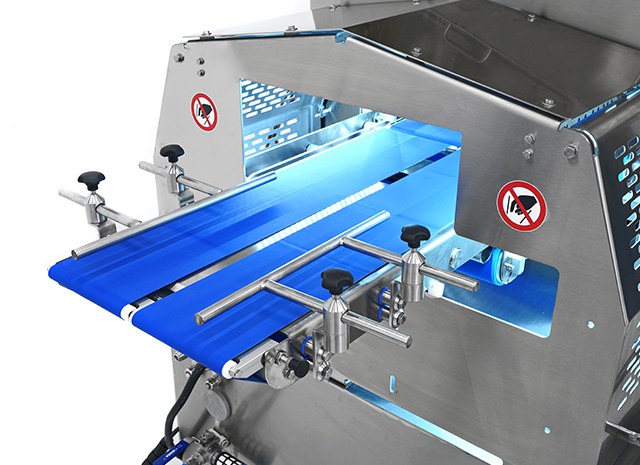

  • Tray infeed and positioning: conveyor belts driven by drum motors.
  • Tool-free belt removal.

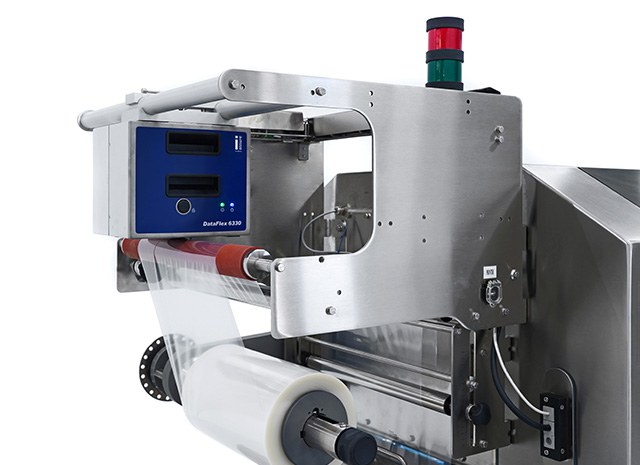

  • Reel shaft: pneumatic reel holder.
  • Film end and skeleton break detection.
  • Motorized reel holder.
  • Centralized lubrication.

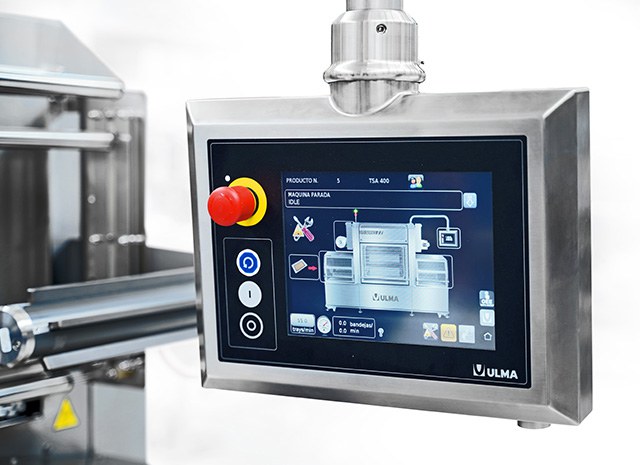

  • Control panel and UPC interface:
    - Industrial PC with 7" graphical touchscreen (optional 10").
    - Password-protected access with three authorization levels.
    - Ethernet interface.
    - Easy operation (recipe changes from a single point).
    - Integrated machine maintenance program with event management.
  • Tray denesters.
  • Loading modules.
  • Feed carts.
  • Product dosing and loading systems.
  • Mold transport carts.
  • Accumulation tables.
  • Aligners.
  • Coding and marking systems.
  • Metal detectors.
  • End-of-line integration.
